About 73% of U.S. homes constructed before 1980 use copper in part of their water supply system. This highlights the enduring importance of copper pipe fittings in plumbing systems. This guide covers the essential copper fittings you’ll find in plumbing. These fittings join, redirect, and control water, gas, and refrigerant flows. You will come across elbows, tees, couplings, adapters, unions, caps, plugs, compression fittings, flare fittings, and push-to-connect copper pipe connectors.
This webpage is about Copper Tube 5/8
Copper remains a favorite among contractors and DIYers thanks to its durability, heat resistance, and water-quality benefits. Copper fittings can last for decades when they are installed correctly. This makes them a cost-effective choice for many projects.
This article will show you how to identify fittings based on size and function. We’ll also compare soldered versus mechanical connections. You will learn how to source compatible parts through trusted suppliers like Installation Parts Supply. Our goal is to provide clear advice for selecting the right plumbing fittings for your next project.
Copper Pipe Fittings: Overview And Why Choose Copper
Copper pipe fittings are a popular choice in both residential and commercial plumbing. Because they combine strength, workability, and long-term reliability, they are ideal for many systems. This overview explains the main reasons plumbers and contractors choose copper for new installations and repairs.
The Benefits of Copper
Copper is valued for its durability and malleability, which allows fittings such as elbows and tees to be formed easily without cracking. Its high heat tolerance makes it a strong choice for hot-water supply lines and boiler loops. Copper also has bacteriostatic properties, ensuring safer potable water compared to some plastics. Copper can be joined by soldering, press systems, compression fittings, or push-fit methods, which adds flexibility to a project.
Longevity And Corrosion Resistance
Copper tubing can last between 70 to 80 years when installed correctly. Its surface oxidation forms a protective patina, limiting deeper corrosion and supporting its longevity and corrosion resistance. To avoid pinhole leaks and premature failure, you need quality materials, proper fluxing, and clean joints. Regular inspections and the use of correct fittings can further extend its service life in both supply lines and HVAC loops.
Applications Where Copper Outperforms Other Materials
Copper outperforms many alternative materials in hot-water systems, refrigeration lines, and high-pressure uses. In HVAC and refrigeration work, pipe 5 8 and copper tube 5/8 sizes are commonly used in refrigerant circuits because they perform reliably under heat and pressure. Compared with PVC or PEX, copper fittings handle higher temperatures and stay rigid under stress. Copper is also less prone to impact damage than multilayer or composite pipes, and it has a proven record in older systems.
| Attribute | Why Copper Excels | Typical Use |
|---|---|---|
| Durability | Strong tensile performance and wear resistance | Hot-water supply lines and boiler loops |
| Temperature tolerance | Withstands high temperatures without softening | Water heaters and HVAC lines |
| Corrosion behavior | Forms protective patina that slows degradation | Long-run supply lines in homes |
| Joining options | Soldering, brazing, compression, push-fit, press | New installs and retrofit repairs |
| Common sizes | Includes pipe 5 8 and copper tube 5/8 used in refrigeration | Refrigerant circuits, tight commercial runs |

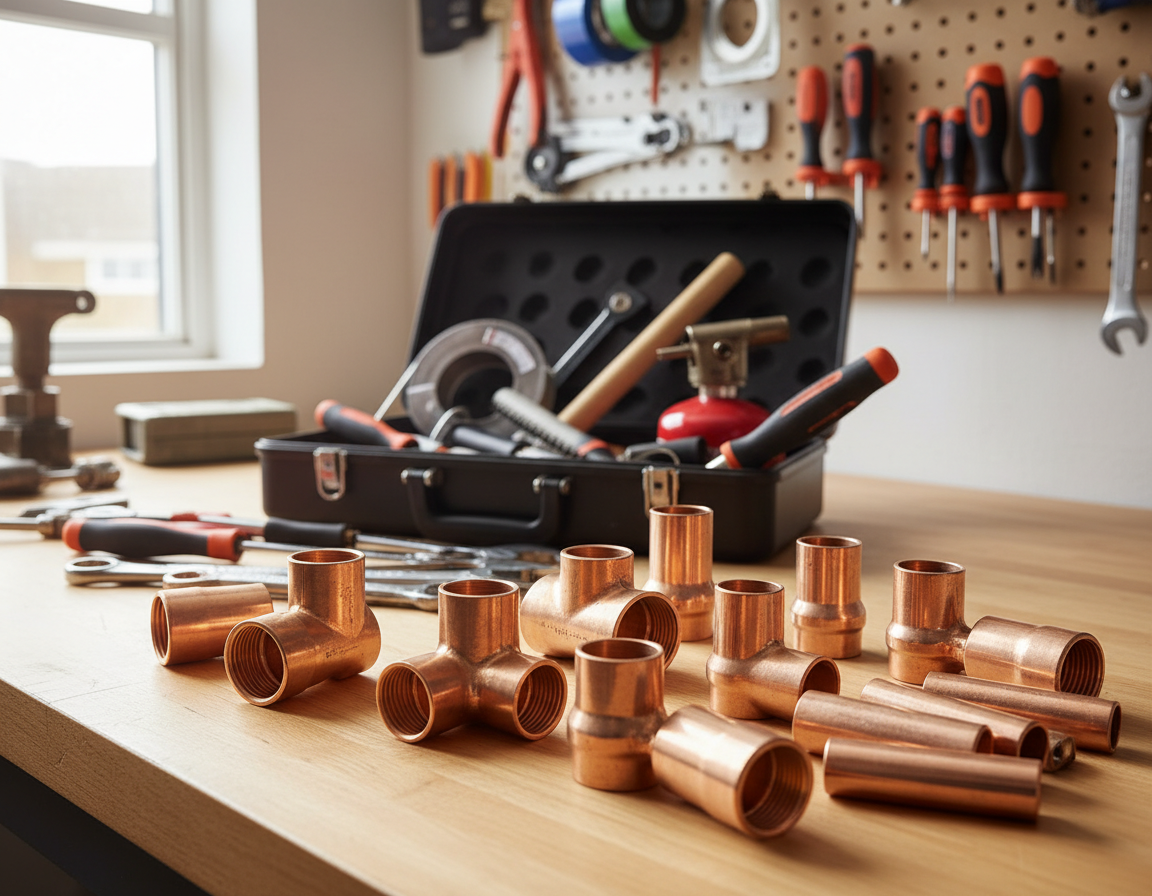

Common Copper Pipe Fittings For Supply Lines
Selecting the right copper fittings is essential for a successful project. This guide covers essential fittings for water supply lines, including those for direction changes and service access. Remember to consider pipe size, material compatibility, and connection style when planning.
Elbows, Tees, And Crosses For Direction Changes And Branching
Elbows are used at 90°, 45°, and 22.5° angles to direct flow around corners. They’re essential for navigating around obstacles or following wall paths. For three-way connections, tees divide or combine flow and are often found in kitchens and bathrooms. Crosses connect four directions, ideal for where systems meet.
These fittings are available in several styles, including sweat/soldered, press, and compression. Select the connection type that fits your copper pipe connectors and the installer’s skill level.
Couplings, Adapters, And Unions For Joining And Maintenance
Copper couplings join two lengths of pipe of the same diameter. Reducing couplings are used when different sizes must be joined. Adapters convert between materials and thread types, such as copper-to-brass or copper-to-PEX.
Unions make it easy to separate sections for repairs or equipment servicing. They’re perfect for where a valve or fixture needs periodic removal. Ensure unions and adapters match the pipe OD or nominal size to prevent leaks.
Caps, Plugs, And Clean-Outs For Access And Sealing
Caps seal an end of a line, while plugs thread into fittings to seal branches. Both are often used during pressure testing and for temporary terminations. For maintenance and clearing blockages, clean-outs offer service access to drain lines.
Choose caps, plugs, and clean-outs that match the system pressure and material. Confirm the fitting size reference—nominal, OD, or ID—is correct, as this is critical for 5 8 copper fittings and others.
As you plan a project, make sure copper pipe connectors, couplings, adapters, and unions are compatible with the pipe type. This helps prevent fit problems and makes maintenance easier.
Copper Compression And Push-To-Connect Connections
Compression and push-to-connect fittings streamline copper plumbing, making it faster and safer in many scenarios. These fittings are especially useful when a torch is not practical or when a fast repair is required. Below, we’ll explore how each system functions, their appropriate applications, and essential installation tips for 5/8 copper tube projects.
How A Compression Fitting Forms A Seal
Compression fittings use a nut and a ferrule to create a seal. When the nut is tightened, the ferrule compresses around the tube and bites into the copper. This method forms a leak-resistant joint without the need for heat. They are commonly used on supply lines and in repair situations where a torch is not feasible.
These joints are effective on various sizes, including 5 8 copper pipe fittings. Because they can be disassembled when installed correctly, they are well suited to accessible valves and meter connections.
Push-To-Connect Fittings For Fast Installations
Push-to-connect copper fittings, also known as quick-connect fittings, allow you to push a deburred tube into the body until it clicks. No soldering, crimping, or special tools are needed. This simplicity makes them a favorite among DIYers and professionals working in confined spaces.
Common sizes, including 5/8 copper tube, are supported by these fittings. Most brands list pressure and temperature ratings for these fittings. Reliable results depend on matching the fitting to the tubing type and following the manufacturer’s depth guidelines.
Why These Fittings Beat Solder In Some Jobs
With compression and push-fit copper fittings, there is no need for a torch, flux, or open flame. That helps reduce fire hazards in occupied buildings and can speed retrofit projects. They are also time-saving options for emergency repairs and installations in tight spaces.
It’s important to note that mechanical fittings might be more expensive per unit and have lower temperature limits than soldered joints. Always check ratings before using quick-connect fittings on hot-water or high-pressure lines. When used correctly, these fittings offer a flexible, safe alternative to soldering in many plumbing applications.
Sweat And Soldered Fittings For Copper Pipe
A sweat connection forms a strong bond between a fitting and a pipe by using flux and filler metal. By contrast, brazing uses higher heat and a filler metal that melts above 840°F. It is commonly used for HVAC and refrigeration joints. Both approaches can create long-lasting, durable joints when performed correctly.
Overview Of Techniques
Sweat copper fittings use solder to fill the gap between copper tube and fitting. Brazing copper pipe uses a hotter flame and brazing rod and is ideal for joints exposed to higher pressure and temperature. The choice between these methods depends on the system’s requirements and local regulations.
Tools And Safety Gear
Key tools include a tube cutter, deburring tool, emery cloth or wire brush, flux, solder or brazing rod, and a torch. For soldering, propane is commonly used, while MAPP or acetylene is better suited to brazing. Always wear safety shoes, an apron, heat-resistant gloves, a respirator or face mask, and protective goggles.
Soldering Tips Step by Step
- Cut the copper tube 5/8 section squarely and deburr the edge for a smooth fit.
- Clean both pipe and fitting with emery cloth or a wire brush until bright copper appears.
- Apply flux to the cleaned surfaces, assemble the joint, and twist slightly to distribute flux evenly.
- Heat the fitting evenly with a surrounding flame. When brazing copper pipe, watch for a slight red tint as the temperature rises.
- Feed the solder or brazing rod into the joint and let capillary action pull the filler around the seam.
- Let the joint cool on its own, then remove any soot and flux residue using an appropriate cleaner.
When to choose soldered fittings
Copper solder fittings are a good option when a permanent, reliable joint is needed in potable-water systems and moderate-temperature settings. Brazing is better suited for HVAC or refrigeration where higher temperature resistance is needed. Any work involving 5/8 copper tubing or copper tube 5/8 sized lines should follow manufacturer instructions and code requirements for pressure compatibility.
Practical considerations
Skilled technique is essential to avoid cold joints and porosity. Inspect each joint for full solder coverage and test systems under pressure before insulation or concealment. Sweat copper fittings remain a standard choice for many plumbing jobs, while brazing copper pipe is ideal in demanding HVAC and refrigeration applications where durability matters most.
Specialty Copper Fittings For HVAC And Refrigeration
To move refrigerant safely, refrigeration and HVAC systems depend on precisely sized tubing and fittings. Materials and connection types are chosen by technicians based on pressure, access for service, and code rules. Understanding common fitting styles and sizes helps prevent leaks and future service problems.
5/8 copper pipe is often used for liquid and suction lines in light commercial and residential systems. Before ordering parts, it is important to confirm whether the specification refers to nominal size or outside diameter (OD).
5 8 copper tube must match fittings sized for that outside diameter. Mismatched parts can lead to poor seals and unsafe joints. Use manufacturer compatibility charts when selecting copper pipe fittings refrigeration components.
5/8 Copper Pipe And 5/8 Refrigeration Tubing Uses
Lines carrying refrigerant require consistent wall thickness and precise bends. A length of 5 8 copper refrigeration tubing is suitable for liquid lines and smaller suction runs. Service valves, meters, and filter driers are often designed around 5/8 OD copper tubing.
Flare, Bite-Type, And Brazed Fittings Used On High-Pressure Refrigerant Lines
Flare fittings seal by compressing a flared tube end under a flare nut. Technicians use flare fittings where serviceability matters, such as access panels and gauges. Flare joints can be hand-tightened for field servicing.
When tightened, bite-type fittings use a ferrule that grips and bites into the tube wall. Installers often prefer bite-type fittings when there is limited space or when flaring is difficult. These fittings offer quick assembly and good vibration resistance for mobile applications.
Brazed fittings create metallurgical joints with strong, leak-resistant bonds. HVAC systems operating at high pressures or elevated temperatures often need brazed connections. Codes and manufacturers may mandate brazing for specific refrigerants and high-pressure circuits.
Sizing Notes: 5 8 Copper OD, ID, And How To Select Compatible Fittings
Before buying fittings, confirm the difference between 5/8 od copper tubing and 5/8 id pipe. A 5/8 id pipe will have a smaller OD than tubing marked 5/8 OD. Checking both OD and ID prevents fitting mismatches and possible leaks.
| Characteristic | 5/8 OD Copper Tubing | 5/8 ID Pipe |
|---|---|---|
| Typical Use | Refrigerant liquid and suction lines, service connections | Less common for refrigerant lines, more common in plumbing |
| Matching fittings | Flare fittings, bite-type fittings, and brazed fittings rated for 5 8 copper tube | Threaded or compression fittings sized to inner-diameter plumbing standards |
| Installation notes | Verify flare nut size and ferrule type before flaring or tightening | Measure OD when adapting to HVAC components to ensure fit |
| Pressure rating suitability | Suitable for high-pressure refrigerant circuits with the correct wall thickness | Varies by pipe class; often lower than refrigeration-rated tubing |
Choose parts by matching the tubing OD to the fitting specification, and select copper pipe fittings refrigeration products that specifically list compatibility with 5/8 od copper tubing. Keep a stock of flare fittings and bite-type fittings for field repairs. Use brazed fittings where codes or system pressure require permanent, high-strength joints.
How To Choose The Right Copper Fitting: Sizing, Material, And Code Considerations
Selecting the right copper fitting requires precise measurement and an understanding of performance ratings. It’s essential to read labels carefully to determine if they use outside diameter or nominal sizing. That step is critical if you want to avoid leaks and make sure the fitting matches the system.
Outside diameter is the sizing basis for many refrigeration and HVAC parts. For example, 5 8 copper pipe od is a common size in refrigeration tubing. By contrast, residential plumbing often uses nominal sizing based on internal diameter. You should always check the manufacturer’s notes on 5/8 in copper pipe sizing before purchasing.
When fitting pipe to fittings, verify whether the tubing is listed as 5 8 id tube or 5 8 od tubing. Compression, sweat, flare, and brazed fittings all require specific preparation and clearances. Select the fitting method that aligns with the application and pressure level.
The system’s temperature and pressure determine the best joint type and material. For hot potable-water systems, high-temperature-rated soldered or press fittings are recommended. Flare or brazed joints are well suited to high-pressure refrigerant lines. Brass adapters are ideal for transitioning between copper and other metals.
Local plumbing codes are also very important. Before starting work, inspect local plumbing codes copper fittings requirements. In some areas, brazed joints are required for HVAC refrigerant work, or mechanical fittings may be restricted in concealed spaces. NSF/ANSI or UPC certifications should be verified to meet code and warranty requirements.
When selecting the best copper fittings, purchase from reputable suppliers like Ferguson or Grainger and follow manufacturer instructions. When there is any uncertainty, ask a licensed plumber or HVAC technician to confirm the correct fit and rating. This helps prevent expensive rework.
| Attribute | Common Marking | When to Use | Notes |
|---|---|---|---|
| Refrigeration tubing | 5 8 copper pipe OD | High-pressure refrigerant lines | Fittings usually sized by OD; use flare or brazed joints |
| Supply water tubing | 5/8 in copper pipe sizing, nominal | Residential water supply | Check whether the label refers to ID or nominal size |
| Compression fittings | Marked by tube OD or nominal ID | Quick repairs, retrofit work | Good for low-to-moderate pressure; follow torque specs |
| Sweat or soldered fittings | Often listed by nominal size | Hot water, durable joints | Proper cleaning, heat, and flux are required for leak-free joints |
| Flare fitting type | 5 8 id tube or 5 8 OD in certain specifications | Fuel lines and refrigeration lines | Do not mix flare and compression unless rated for both |
| Approved certifications | NSF/ANSI, UPC | Potable-water systems | Required under many local plumbing codes copper fittings requirements |
A detailed checklist should be followed: confirm sizing, verify certifications, choose fittings for the correct pressure and temperature, and ensure proper installation. This approach helps you select copper fittings that perform well and comply with local regulations.
Installation Tips, Common Mistakes, And Maintenance For Copper Fittings
Proper preparation is critical for preventing failures. Adhering to basic installation tips for copper fittings can significantly reduce leaks and rework. The decisions made during assembly have a major impact on long-term system performance. That is true whether the job involves standard home supply piping or a 5/8 od copper tube in HVAC work.
Cutting, Deburring, And Cleaning Before Assembly
Start by using a proper tube cutter to ensure a square cut. Once the pipe is cut, remove burrs and copper shavings from the end and the pipe ID. Use emery cloth or a wire brush to clean the inside of the fittings and the outside of the pipe end. This step is essential for proper solder flow and even flux coverage. If preparation is skipped, capillary action can be compromised and leaks may occur.
Using Flux, Heat, And Solder Properly While Avoiding Cold Joints And Leaks
Apply flux evenly to both mating surfaces before assembling the joint. Then heat the fitting evenly. When soldering copper pipe, keep the flame moving so heat is distributed evenly. Apply solder to the heated seam so capillary action can draw it in. Avoid overheating, since it can burn off flux and weaken the joint, and avoid underheating, which creates leaking cold joints.
Teflon Tape, Thread Sealants For Threaded Copper Fittings, And Avoiding Overtightening
For threaded copper fittings, use Teflon tape or a compatible pipe thread sealant on male threads. The tape should be wrapped clockwise so it stays in place as the fitting is threaded. Do not overtighten, because too much torque can crack fittings or strip threads. For compression fittings, use the manufacturer’s recommended torque or turn count so the ferrule is not crushed.
Routine Inspection, Leak Prevention, And When To Replace Fittings
Inspect copper fittings regularly for corrosion, pinhole leaks, and mechanical damage. Preventing leaks starts with correct assembly and continues through routine inspections. If leaks persist after tightening, corrosion is visible, or the system is being upgraded to modern standards, the fittings should be replaced.
Common mistakes include neglecting cutting, deburring, and cleaning, mixing OD and ID sizing conventions, overheating during soldering, and ignoring manufacturer pressure limits. Always keep spare parts from trusted suppliers like Mueller Industries or Viega and follow product instructions to maintain reliable systems.
Conclusion And Final Guidance
In plumbing and HVAC, copper pipe fittings stand out for their durability, resistance to heat, and long lifespan. The choice between soldered joints, compression fittings, push-to-connect options, flare connections, or brazed assemblies depends on the job’s specifics. Correctly matching the fitting size and type is critical. Be careful with OD versus ID measurements, such as 5/8 sizing, so you do not make fitment errors.
Copper fittings should be selected only after confirming they meet pressure ratings, material standards, and local code requirements. If you need quality products and reliable support, use a trusted wholesale distributor like Installation Parts Supply. Such suppliers can provide compatibility charts and certification details that help guide product selection for plumbing projects.
Effective preparation and installation are key to a lasting system. Start by cutting, deburring, and cleaning the pipe ends. Then, follow the recommended methods for fluxing, heating, or mechanical assembly. To maintain a safe, leak-free system, carry out regular inspections and replace worn fittings on time.
