Close to 70% of household leaks are due to improper jointing. This underscores the critical nature of secure joints, as well as the choice of pipes.

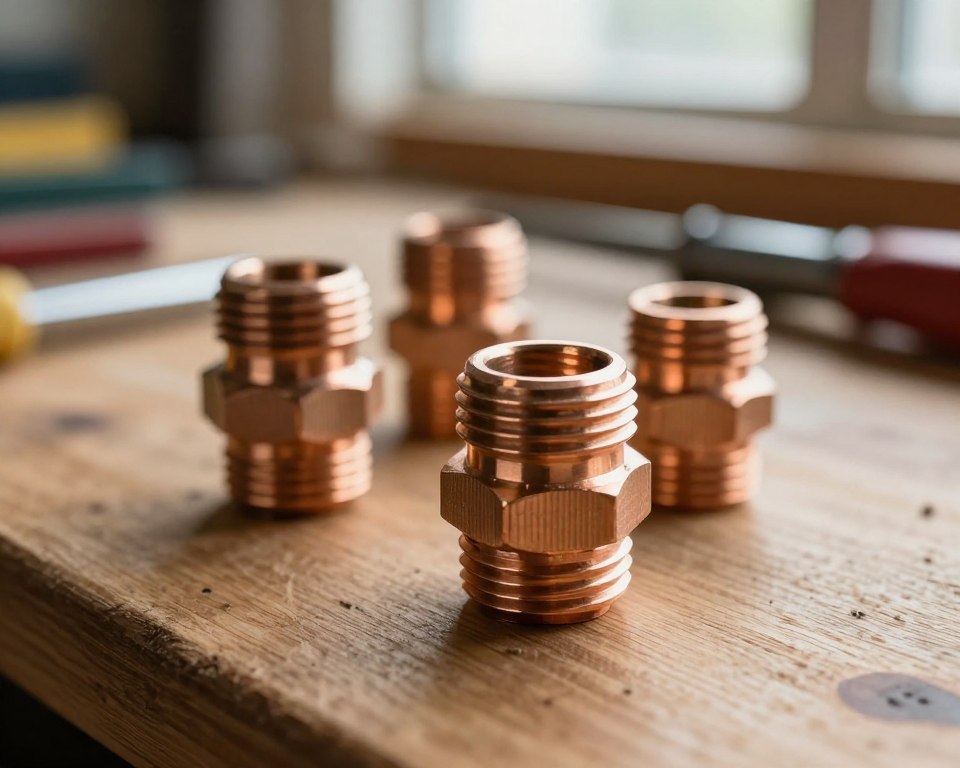

Buy 3/4 Inch Compression Fitting
For tradespeople and homeowners, a dependable 3/4 inch compression fitting is crucial. These parts deliver secure, leak-free connections when paired with the correct tubing.
Copper pipes M, L, K are widely available, adhering to ASTM and NSF standards for various applications. A 3/4 copper compression union, when installed correctly, delivers long-lasting durability and corrosion resistance. It also ensures compliance with regulations for new builds and maintenance.
Installation Parts Supply.com offers top-grade 3/4″ fitting parts and matching tubing. This provides pros and DIYers availability of high-quality parts that meet industry standards for performance and reliability.
Benefits Of Premium 3/4 Copper Compression Fittings In Plumbing And HVAC
Premium 3/4 copper compression fittings provide reliable connections without soldering. Experts choose them for their role in allowing fast hookups, fixes, and retrofit work. These fittings offer installers with a strong, serviceable connection that withstands the demands of the field.
Durability and corrosion resistance of copper fittings
The natural resistance of copper to oxidation and its capacity to endure temperature fluctuations render it suitable for diverse jobs. It is good for drinking water, AC lines, solar systems, and certain fuel pipes. Quality fittings, in particular, resist elements, maintaining seal integrity for a long time.
Works with M, L, and K copper tubes
To prevent leaks, compression fittings must match the pipe OD and thickness. Types M, L, and K cater to most needs: Type L is suitable for home and business water lines, Type M for lighter residential runs, and Grade K for underground or heavy-duty applications. Make sure to check the pipe dimension when ordering a 3/4 compression nut or union to ensure a proper fit.
Uses in home and business systems
Such fittings are flexible and suitable for a many different tasks. They frequently appear on potable water lines, branches, and supply lines. In HVAC work, they provide safe function by pairing with AC copper and compatible fittings. For mechanical joints in service calls, a 3/4″ union or a 3/4 union brass coupler provides quick access for upkeep.
| Feature | Value | Usage |
|---|---|---|
| Rust resistance | Long service life in wet and exposed conditions | Potable water, solar, outdoor HVAC lines |
| Works with standard copper | Reliable seals when matched to tube OD | Residential and commercial plumbing |
| Tool-free or simple-tool installation | Faster repairs and less downtime | Service, retrofits, emergencies |
| Available in brass and copper | Choices for different needs | 3/4 union brass for versatility, copper for corrosion resistance |
Understanding 3/4 Copper Compression Fitting Parts And Features
Knowing the parts and materials is key to selecting the right 3/4″ fitting. The fittings form a secure seal without the need for soldering. They work with a wide range of pressure and temp levels.
Components Of A Compression Fitting
The primary parts are the fitting body, a compression ring or ferrule, and the nut. Screwing the nut forces the ferrule into the body. This compression seals the pipe, preventing leaks.
Quality packages often include an seal ring made from Buna or EPDM. Certain sets also feature a extra seal, simplifying upkeep. These bonuses are common in premium parts for liquid cooling and HVAC systems.
Fitting Materials And Coatings
Standard materials include copper, brass, and plated brass. Copper parts are best for copper pipes and preventing electrolysis. Brass fittings are the norm for water and AC lines.
Nickel-plated brass provides enhanced rust protection and a shiny appearance. Custom caps may be powder-coated or anodized for color and protection. Verify chemical compatibility before choosing colored finishes for glycol loops or fluid lines.
Popular Fitting Styles And Keywords
Typical styles include unions, couplers, tees, and straight adapters. You’ll find them labeled as 3/4″ unions, couplers, tees for splitting pipes.
In part selection, check the nut size. A 3/4 brass compression coupling is a robust choice when brass is preferred. Look at the ratings, such as pressure rating, temperature range, and if spares come with it.
Below is a quick comparison to aid your choice.
| Type | Material | Usage | Remarks |
|---|---|---|---|
| Compression union | Copper/Brass | Joining two copper tubes | Good for repairs and modular systems |
| 3/4 compression coupler | Brass or nickel-plated brass | Joining same size pipe | Often sold with ferrules and nuts included |
| 3/4 brass compression coupling | Brass | Potable water and HVAC | Corrosion resistant |
| Compression tee | Brass/Plated | Branching lines | Check PSI rating |
| Adapter | Brass, copper, or plated | Fitting to valve | Check threads/seat |
Refer to this guide to match a nut and ring to the right fitting. Good fitment avoids drips and makes install faster. Keep extra parts ready for field repairs.
Best Practices For Installing And Troubleshooting 3/4 Compression Fittings
Make sure the tube type and size match the connector. Verify the pipe is the right grade (Type M, L, K, or ACR) and is 3/4″ OD. Check for standard stamps if needed. Select matching fittings that match the tube metal to avoid galvanic corrosion.
Cutting and cleaning the pipe are vital steps. Use a tubing cutter for a straight cut. Deburr the inside edge and clean outer burrs for even ferrule seating. Put the nut and ring onto the tube prior to insertion into the fitting.
Copper tube preparation and fitting choice
Choose the fitting style for your joint. A union connects ends, while a 3/4 compression coupler connects straight sections. A 3/4 copper compression fitting might have special seals for particular jobs. Opt for premium parts in high-pressure lines or refrigeration work.
Step-by-step installation tips
Finger-tighten the compression nut until the tube bottoms out in the fitting body. Use a wrench to tighten the nut by the fraction of a turn specified in instructions. Some premium fittings have O-rings and require little more than hand tightening; follow the manual.
If the fitting uses a ferrule, tighten until it compresses and grips the tubing. If there is an O-ring, check the seal before final torque and have a spare on hand for repairs. For critical or buried lines, test pressure at working pressure and check for leaks.
Common leak causes and fixes
Leaks often stem from a non-square cut, bad rings, mis-seated tubing, or incorrect nut torque. Over-tightening can crush rings and loose nuts causes looseness. Swap out bad parts and re-cut the tube squarely when needed.
Recurring drips might mean the fitting needs replacement or a solid connection like soldering or brazing is more appropriate. Keep spare nuts, rings, seals in your toolbox for fast fixes. A union or a 3/4 compression coupler can be easily changed if replacement is needed.
| Problem | Likely Cause | Quick Fix |
|---|---|---|
| Slow leak | Loose nut or bad ferrule | Tighten to spec; reseat/replace |
| Instant leak | Damaged O-ring or ferrule, or tube not fully inserted | Disassemble, inspect O-ring and ferrule, re-cut tube square, replace parts |
| Constant leaking | Deformed ferrule from over-tightening or wrong material match | Replace fitting with premium 3/4 copper compression fitting or use soldered joint for permanence |
| Union leak | Misaligned or bad torque | Realign tubing, check both 3/4 compression nuts, tighten to spec, pressure-test |
| Joint fails under pressure | Incorrect fitting type, e.g., wrong coupler or substandard material | Upgrade to a certified 3/4 compression coupler and test at system pressure before service |
Guide To Buying 3/4 Compression Fittings From Installation Parts Supply.com
Begin by examining the specs and material. Select brass, plated, or copper, ensuring they have clear corrosion resistance ratings. Check listings for operating pressure and temperature limits. It’s also important to see if it comes with ferrules or spare O-rings. Know the tightening procedure, hand or tool tight.
Choose the fitting type based on your project’s needs. A 3/4 compression union is ideal for connecting two tubes of the same size. For straight connections, a 3/4 compression coupler is suitable. A brass coupling is perfect for transitions or when aesthetics are a concern. Keep extra nuts/rings for fixes.
Ensure the fitting is compatible 3/4″ OD tubes. Check compatibility with compatibility with M, L, K, or ACR tubing. For HVAC or refrigeration projects, confirm compatibility with ACR and fluids.
Look at the finish and quality of the fittings. High-end parts may offer colors or plating that stop tarnish and enhance appearance. High-quality seats and precision ferrules reduce leaks and make installation easier.
Before making a purchase, inquire about availability and lead times. Installation Parts Supply usually stocks a large selection of fittings and tubes available. Note the shipping deadlines if same-day processing is required.
Review the warranty and return policies. Look for clear warranty coverage and a easy returns, such as a 30-day policy for new items. Keep receipts and order numbers handy to speed up claims for defective items.
Use the checklist below to make choosing easy:
- Material and corrosion rating
- Pressure/Temp limits
- Included ferrules, O-rings, and installation notes
- Compatibility with 3/4-inch OD tubing and tube type
- Fitting type: 3/4 compression union, 3/4 compression coupler, or 3/4 brass compression coupling
- Availability, shipping lead time, and warranty terms
Summary
Opting for a top-tier 3/4 copper compression fitting provides leak-free connections. They are key for residential and commercial systems. They are compatible with standard copper types. Thus you can pick the best part for your project, ensuring durability under normal conditions.
For best results, make sure you know the tubing type and size. Cut and deburr the ends of the tubes. Choose the fitting material and configuration for your application. Following these rules and following the manufacturer’s guidelines minimizes the chance of leaks and the need for additional work.
For reliable parts, visit Installation Parts Supply. They offer dependable stock, certified copper, and good policies. By checking specs, checking availability, and choosing quality fittings, you get solid connections on every project.
